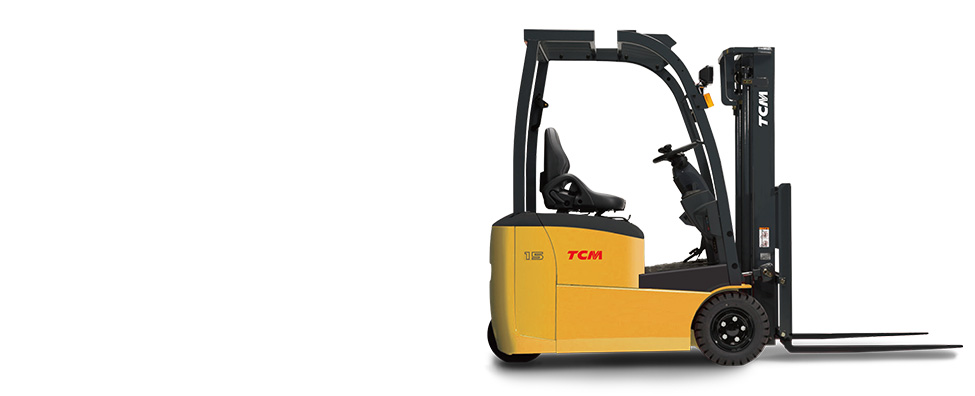

FTB Series (3 wheel, 1.3 - 2.0 ton)

Exceptional
Power
Controls

<Product Features>

  • Counterbalanced electric three wheel forklifts (Pneumatic tire model)
  • Load capacity range : From 1.3-2.0 ton
  • Power source : Electric-power
  • Wet disc braking system provides more powerful and consistent stopping power to meet more demanding applications and environments.
  • Advanced regenerating braking allows trucks to conserve more energy wile braking and slowing.
  • Trucks will not roll backward more than 1 km/h on a slope, even when the accelerator or brake is released.
  • Equipped with the ergonomic Operator Restraint Suspension (ORS) seat.

Main Truck Specifications

Load Capacity Load Center Length to fork face Wheelbase Width Min. Turning Radius
FTB13-9 1300kg500mm1785mm1220mm 1090mm 1410mm
FTB15-9 1500kg 500mm 1885mm 1320mm 1090mm 1510mm
FTB16-9 1600kg 500mm 1980mm 1415mm 1090mm 1605mm
FTB18-9 1800kg 500mm 2035mm 1415mm 1090mm 1660mm
FTB20-9 2000kg 500mm 2105mm 1415mm 1090mm 1690mm
FTB20-9LB 2000kg 500mm 2185mm 1525mm 1090mm 1770mm
