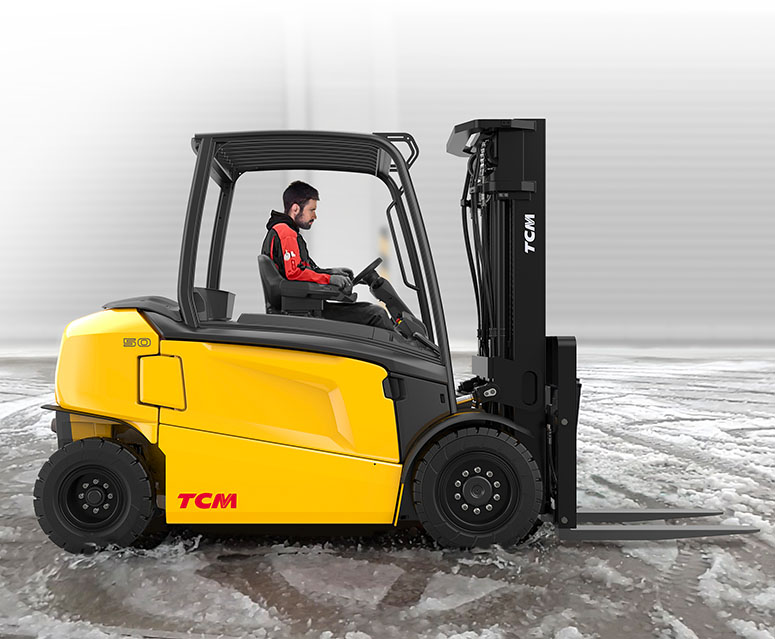

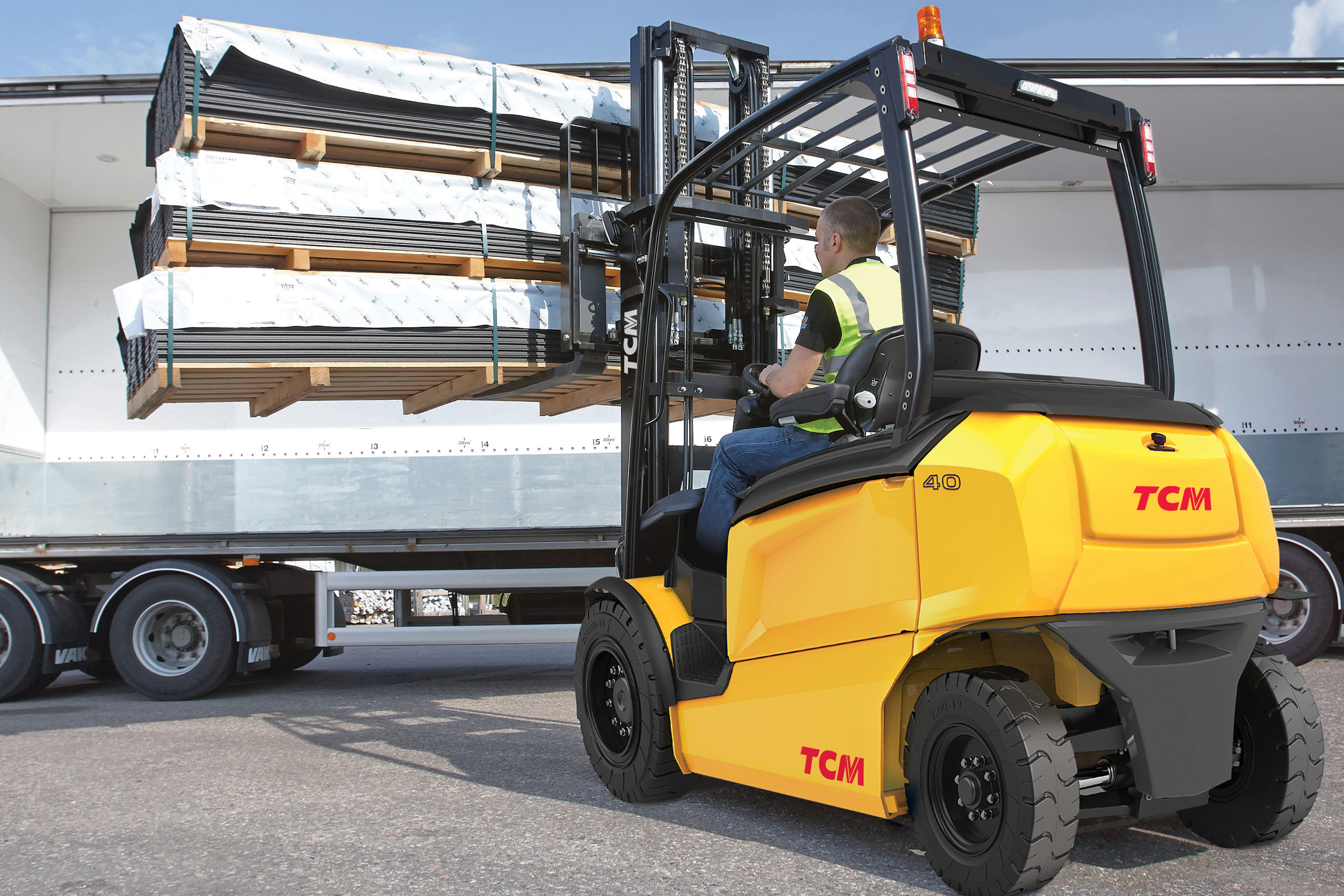

FHB Series (4 Wheel, 4.0-5.5ton)

Remarkable Operator Comfort

  • Counterbalanced electric four wheel forklifts (Pneumatic tire model)
  • Load capacity range : From 4.0-5.5 ton
  • Power source : Electric-power
  • Quietest hydraulic pump in market, near to silent drive units eliminate operator fatigue and stress include noise pollution.
  • Independently controlled drive motors combined with 100+ degree steer axle deliver impressive 4 wheel steering and improved tight space agility.
  • Outstanding peripheral vision for clear sight when positioning, loading, manoeuvering, even in tight space.
  • Impressive stability with load sensing system and curve control, reducing operator risk when operating truck.
  • Intuitively integrated air conditioning and instant heat for comfortable working in hot and cold environments. (Optional)

Main Truck Specifications

Model Load Capacity Load Center Length to fork face Overall Width Overhead Guard Height Turning Radius Battery Vo;tage
FHB40-E1 4000kg 500mm 2825mm 1370mm 2340mm 2289mm 80
FHB45-E1 4500kg 500mm 2825mm 1370mm 2340mm 2289mm 80
FHB50C-E1 4990kg 500mm 2825mm 1450mm 2340mm 2289mm 80
FHB50-E1 4990kg 500mm 2970mm 1450mm 2340mm 2434mm 80
FHB50H-E1 5000kg 600mm 2990mm 1450mm 2340mm 2434mm 80
FHB55H-E1 5500kg 600mm 2990mm 1450mm 2340mm 2434mm 80
