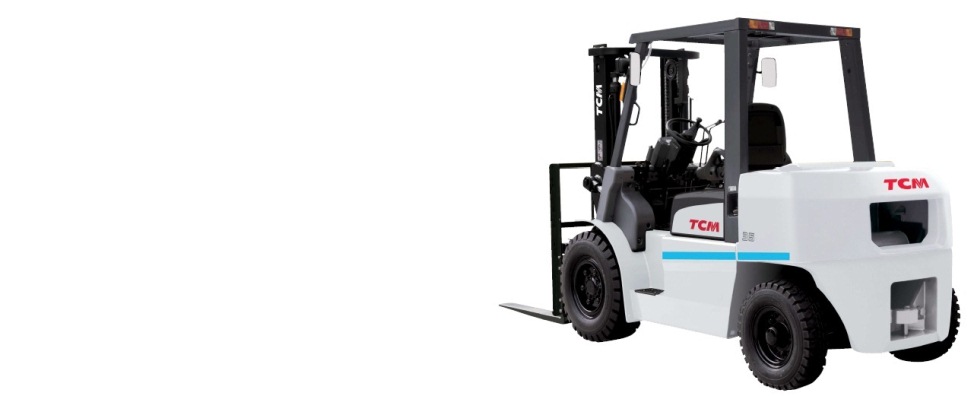

FD/FG35-50 (3.5 - 5.0 ton)

New Dimension in
Performance

<Product Features>

  • IC engine-powered counterbalance forklifts
  • Load capacity range : From 3.5 ton - 5.0 ton (Load center : 600mm)
  • Power source : Gasoline engine (GK45) and diesel engine (Mitsubishi S6S)
  • The diesel models equipped with low-vibration, low-cost S6S engine which has the equivalent performance to comply the Tier 2 emission requirements.
  • The major truck specifications are shown as follows: (Overall length does not include fork length.)

Main Truck Specifications

EngineTransmissionLoad capacityLoad centerOverall widthOverall lengthOverall heightTurning radius
FD35T9S6S dieselAutomatic3500kg600mm1480mm3085mm2230mm2730mm
FD35C9S6S dieselManual3500kg600mm1480mm3085mm2230mm2730mm
FD40T9S6S dieselAutomatic4000kg600mm1480mm3135mm2230mm2790mm
FD40C9S6S dieselManual4000kg600mm1480mm3135mm2230mm2790mm
FD45T9S6S dieselAutomatic4500kg600mm1480mm3215mm2230mm2825mm
FD45C9S6S dieselManual4500kg600mm1480mm3215mm2230mm2825mm
FD50T9S6S dieselAutomatic5000kg600mm1480mm3415mm2230mm3040mm
EngineTransmissionLoad capacityLoad centerOverall widthOverall lengthOverall heightTurning radius
FG35T3GK45 gasolineAutomatic3500kg600mm1480mm3080mm2250mm2790mm
FG40T3GK45 gasolineAutomatic4000kg600mm1480mm3110mm2250mm2820mm
FG45T3GK45 gasolineAutomatic4500kg600mm1480mm3190mm2250mm2860mm
FG50T3GK45 gasolineAutomatic5000kg600mm1480mm3390mm2250mm3040mm
