Products Line Up

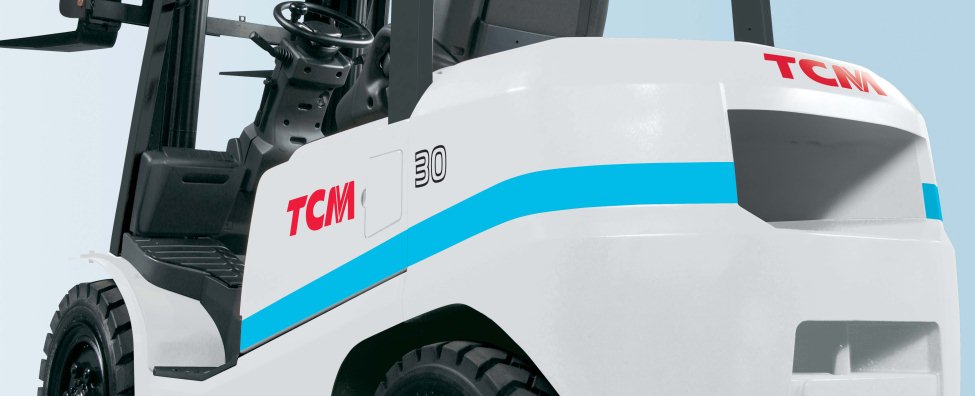

iNOMA (1.5 - 3.5t)


<Product Features>

  • Engine-powered counterbalance forklifts
  • Load capacity range : From 1.5 ton to 3.5 ton (Load center : 500mm)
  • Power sources : The model line-up consists of diesel engine models and gasoline models.
  • Diesel engine models : D1503 engine (Kubota), C240 engine (Isuzu), V2403 engine (Kubota) and QD32 engine (GCT)
  • Gasoline engine models : GK15/GK21/GK25 engines (GCT)
  • The major truck specifications are shown as follows:

Main Truck Specifications

Load capacityLoad centerMax. fork heightOverall widthOverall lengthOverall heightTurning radius
1.5 ton model1500kg500mm3000mm1070mm2245mm2070mm1980mm
1.75 ton model1750kg500mm3000mm1100mm2275mm2070mm2010mm
2.0 ton model2000kg500mm3000mm1150mm2485mm2070mm2170mm
2.5 ton model2500kg500mm3000mm1150mm2555mm2070mm2240mm
3.0 ton model3000kg500mm3000mm1225mm2705mm2090mm2400mm
3.5 ton model3500kg500mm3000mm1290mm2800mm2140mm2470mm
