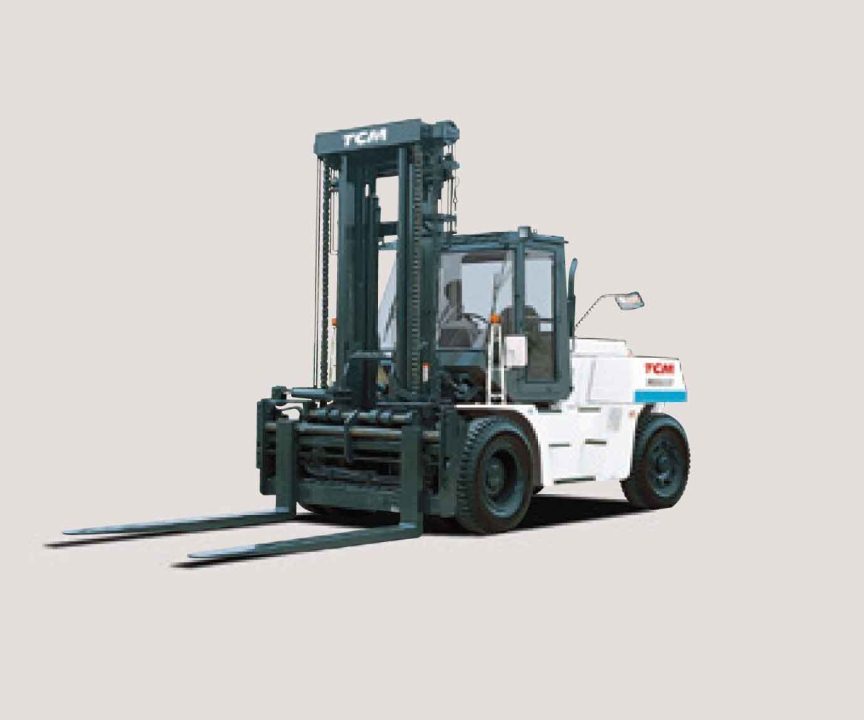

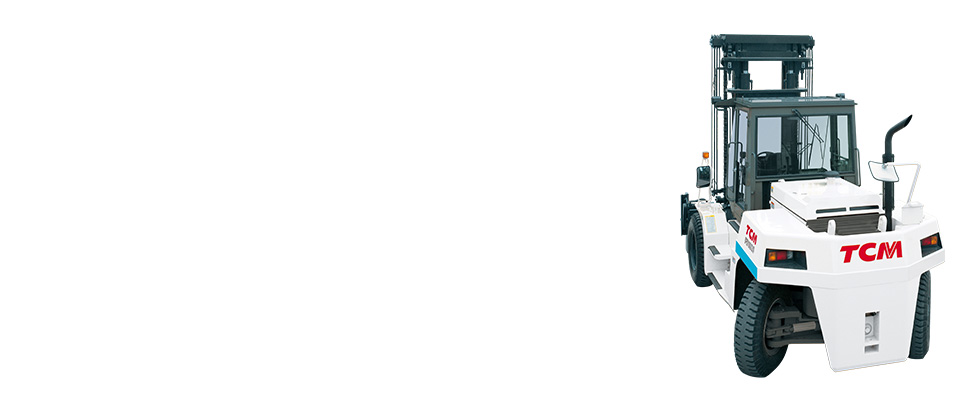

FD100-160S (10 - 16 ton)

POWERFUL &
ECOLOGY

<Product Features>

  • Engine-powered counterbalance forklifts
  • Load capacity range : From 10 ton to 16 ton (Load center : 600mm)
  • Power source : Diesel engine (Isuzu 6BG1T)
  • Heavy duty forklifts equipped with 6BG1T diesel engine which has the performance to meet the emission levels required in Stage II / Tier 2 emission control standards in the U.S. (EPA), Europe and Japan.
  • Has three speed automatic transmissions, deluxe multi-functional operator's seat, small steering wheel as standards.
  • Available options : Large capacity air conditioner, pillar-less cabin and others. Please ask your nearest TCM sales representatives.
  • The major truck specifications are shown as follows:

Main Truck Specifications

Load capacityLoad centerMax. fork heightOverall widthOverall length (Without forks)Overall height (Mast)Overall height (Headguard)Turning radius
FD100-3H10000kg600mm3000mm2240mm4285mm2895mm2740mm4000mm
FD115-311500kg600mm3000mm2280mm4285mm2915mm2755mm4000mm
FD120-312000kg600mm3000mm2280mm4285mm2915mm2755mm4000mm
FD135-313500kg600mm3000mm2360mm4545mm3150mm2775mm4300mm
FD150S-315000kg600mm3000mm2360mm4545mm3150mm2775mm4300mm
FD160S-316000kg600mm3000mm2360mm4685mm3150mm2775mm4450mm
