Products Line Up

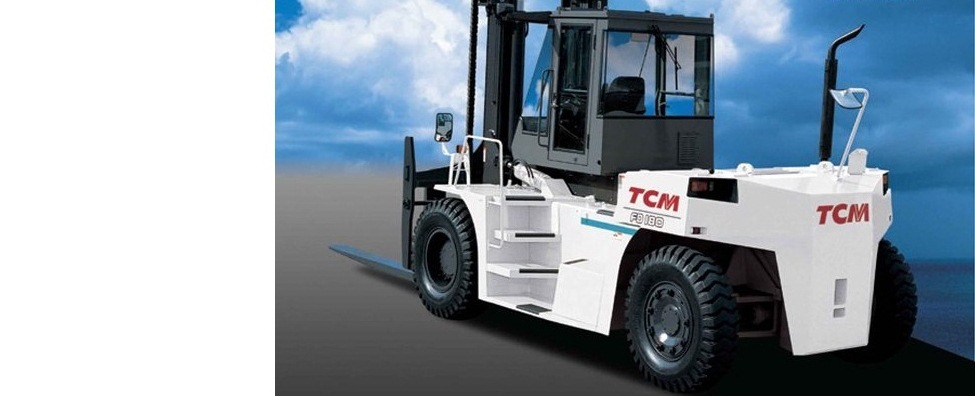

FD160-230 (16 - 23 ton)

POWERFUL &
ECOLOGY

<Product Features>

  • Engine-powered counterbalance forklifts
  • Load capacity range : From 16 ton to 23 ton (Load center : 900mm)
  • Power source : Diesel engine (Isuzu 6BG1T)
  • Heavy duty forklifts equipped with 6BG1T diesel engine which has the performance to meet the emission levels required in Stage II / Tier 2 emission control standards in the U.S. (EPA), Europe and Japan.
  • Has three speed automatic transmissions, deluxe multi-functional operator's seat, small steering wheel as standards.
  • The main truck specifications are shown as follows:

Main Truck Specifications

Load capacityLoad centerEngineOverall widthOverall length (Without forks)Overall height (Headguard)Turning radius
FD160-216000kg900mm6BG1T diesel2970mm5325mm3225mm5000mm
FD180-218000kg900mm6BG1T diesel2990mm5365mm3225mm5000mm
FD200-220000kg900mm6BG1T diesel3060mm5365mm3285mm5150mm
FD230-223000kg900mm6BG1T diesel3060mm5545mm3280mm5350mm
