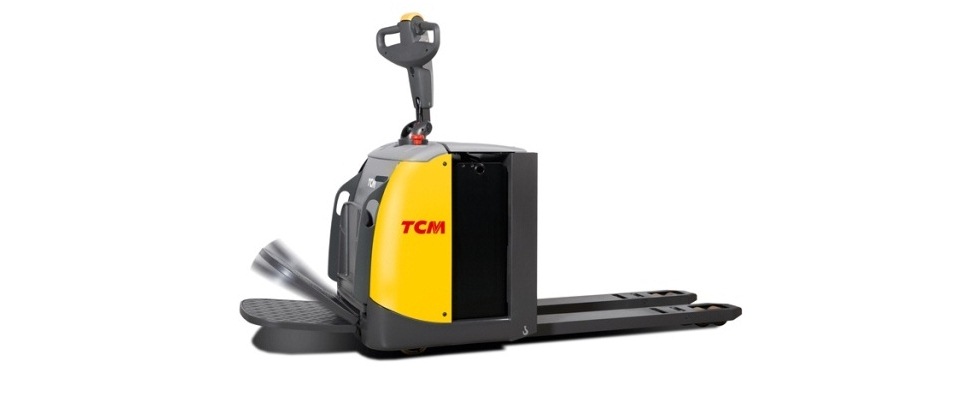

Pallet Trucks (PTL/PTR/PTM)

For
Higher Productivity

<Product Features>

  • Pedestrian pallet trucks (Including stand-on type pallet trucks)
  • Load capacity range : From 1.8 ton to 2.5 ton (Load center : 600mm)
  • Power source : Electric-powered motor
  • Equipped with ergonomically designed tiller arm for the truck control.
  • Personal PIN code access setting available.
  • Foldable platform is available for the stand-on type trucks. This platform gives the operator the option to stand on or walk with the truck according to the application.
  • The truck availability and their major truck specifications are shown as follows:

Main Truck Specifications

TypeLoad capacityLoad centerTruck width
PTL 180Pedestrian1800kg600mm660mm
PTL 200Pedestrian2000kg600mm660mm
PTR 200Stand-on2000kg600mm770mm
PTR 250Stand-on2500kg600mm770mm
PTM 200Stand-on2000kg600kg770mm
