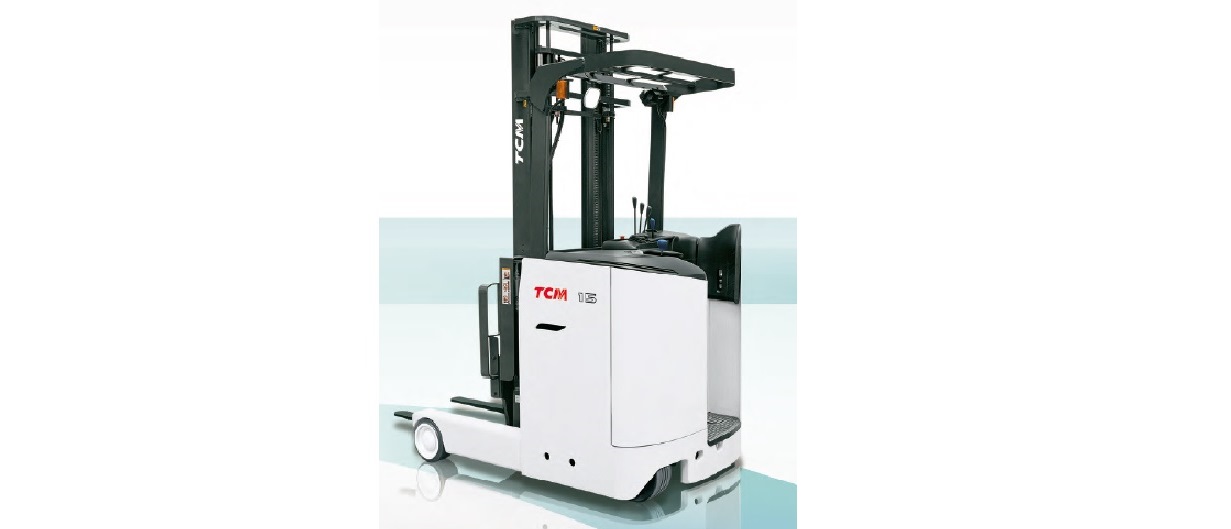

FRB-9 (Stand-up, 1.0 - 3.0 ton)

State of the Art

  • Pedal with a presence switch
  • Soft Landing System
  • Rigid monocoque frame for greater durability
  • Operator friendly steering wheel and levers
  • Antiroll back system
  • Easy to read display
  • Auto power-off system
  • Eco Switch with P (powerful), N (Normal), C (Customize) and Eco Mode. In Eco Mode, daily electricity consumption is cut by 15% by controlling maximum performance such as traveling speed and lift speed.
  • Operation Customizing System
  • Central Management System for hydraulic system and traveling system
  • Improved Vehicle Stability
  • Anti-slipping control

Main Truck Specifications

ChassisLoad capacityLoad centerMax. fork heightOverall widthOverall length (without forks)Overall heightTurning radiusBattery max. capacity (5hr)
(J-)FRB10-9LCNarrow type1000kg500mm3000mm990mm1035mm1995mm1350mm24V/390Ah
(J-)FRB12-9LCNarrow type1200kg500mm3000mm990mm1035mm1995mm1455mm24V/390Ah
(J-)FRB12-9LStandard type1200kg500mm3000mm1090mm1070mm1995mm1455mm48V/201Ah
(J-)FRHB12-9LStandard (High mast)1200kg500mm4000mm1090mm1070mm2495mm1510mm48V/201Ah
(J-)FRB15-9LStandard type1500kg500mm3000mm1090mm1160mm1995mm1580mm48V/280Ah
(J-)FRB18-9LStandard type1800kg500mm3000mm1090mm1165mm1995mm1760mm48V/280Ah
(J-)FRHB15-9LStandard (High mast)1500kg500mm4000mm1090mm1160mm2495mm1760mm48V/280Ah
(J-)FRHB18-9LStandard (High mast)1800kg500mm4000mm1090mm1255mm2495mm1810mm48V/280Ah
(J-)FRB20-9LStandard type2000kg500mm3000mm1190mm1285mm2050mm1785mm48V/320Ah
(J-)FRB25-9LStandard type2500kg500mm3000mm1190mm1285mm2050mm1955mm48V/320Ah
J-FRB30-9LStandard type3000kg500mm3000mm1230mm1390mm2050mm2050mm48V/370Ah
(J-)FRHB20-9LStandard (High mast)2000kg500mm4000mm1190mm1285mm2550mm1955mm48V/320Ah
(J-)FRHB25-9LStandard (High mast)2500kg500mm4000mm1190mm1325mm2550mm2020mm48V/320Ah
J-FRHB30-9LStandard (High mast)3000kg500mm4000mm1230mm1490mm2550mm2250mm48V/370Ah
