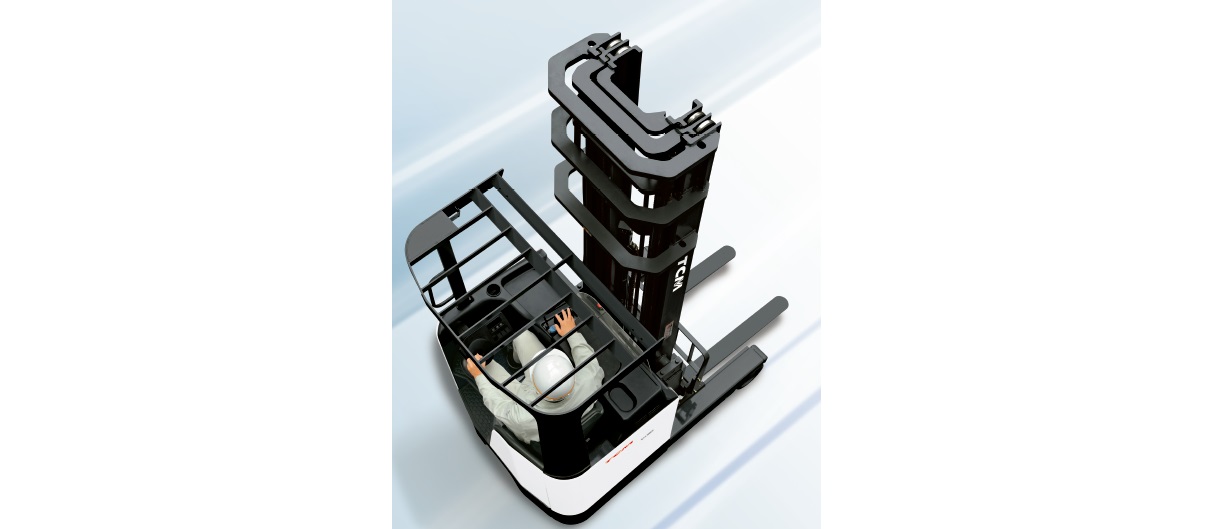

FRSB-9 (Sit-on, 1.4 - 2.0 ton)

The Leader in
Reach Truck
Innovation

  • Sit-on type reach truck
  • Central Management System - Exhibits more powerful and more advanced capabilities. By integrating the travel, hydraulic and electric steering functions, the system's advanced intelligence optimizes the operator's interaction with the forklift.
  • Faster Speed - the unique control system provides optimal control of powerful travel and hydraulic AC motors, resulting highly efficient driving, lifting and turning
  • Tight Turning - Excellent maneuverability for narrow spaces with minimum turning radius and right angle stacking aisle width by adopting 360 degrees endless steering
  • Stable Lifting - Chassis and rigid mast ensure excellent stability even during high lift heights. The result is stable load handling at up to seven meter heights without capacity reduction when equippMultied with large batteries.
  • Shock absorption mast and Soft Landing System prevent the loads from damages by vibration.
  • Multi-display with wheel indicator, self-diagnosis function, driving mode setting. Semi-auto stacking system is available as option.
  • Auto power-off system
  • Load handling and traveling interlock system
  • Cold storage applications are available - CS (-20 celsius continuous exposure, -35 celsius intermittent exposure) and FCS (-35 celsius continuous exposure, -55 celsius intermittent exposure)

Main Truck Specifications

Load capacityLoad centerLift heightOverall widthOverall length (without forks)Overall height (headguard)Turning radiusBattery max. capacity (5hr)
FRSB14-9F1400kg600mm6000mm1270mm1210mm2665mm1610mm48V/360-420Ah
FRSB16-9F1600kg600mm6000mm1270mm1210mm2665mm1705mm48V/360-420Ah
FRSB20-9F2000kg600mm6000mm1334mm1290mm2675mm1755mm48V/480-560Ah
