3N1 Series (3 wheel, 1.3 - 2.0 ton)｜Products

Consistently
Durable
Performance

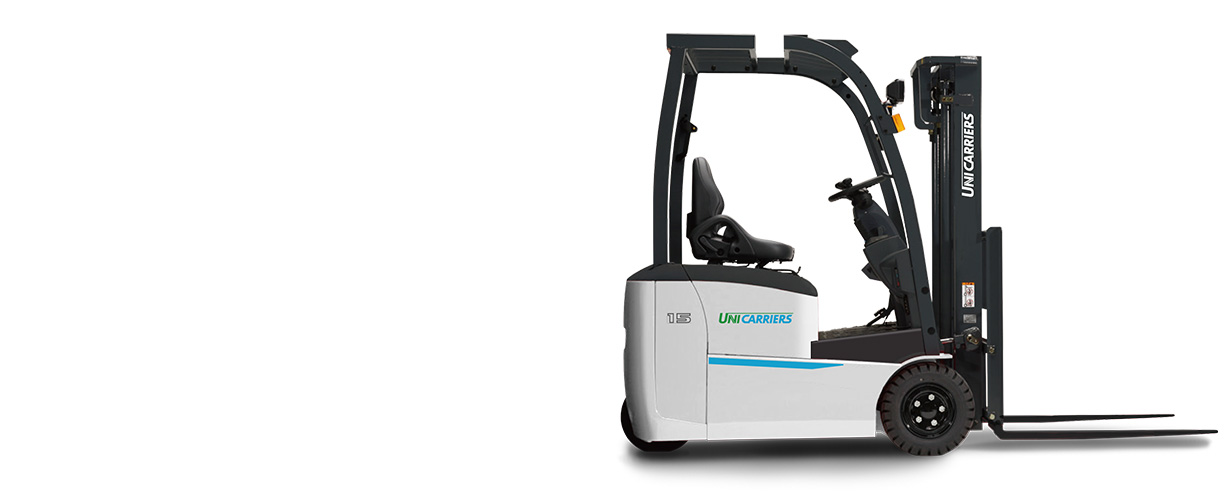

Counterbalanced electric three wheel forklifts (Pneumatic tire model)
Load capacity range : From 1.3-2.0 ton
Power source : Electric-power
Pitching control system effectively reduces mast shaking quickly when moving over bump.
Ergonomically placed handgrip makes it easy to keep your body turned backwards.
Parking brake alert can be triggered if you leave the truck without applying parking brake even when the key is turned off.
Emergency stop button is thoughtfully placed.
Load indicator helps operator to be aware if the truck is overloaded. (Standard feature)

Main Truck Specifications

	Load Capacity	Load Center	Length to fork face	Wheelbase	Width	Min. Turning Radius
A3N1L13Q	1300kg	500mm	1785mm	1220mm	1090mm	1410mm
A3N1L15Q	1500kg	500mm	1885mm	1320mm	1090mm	1510mm
A3N1L16Q	1600kg	500mm	1980mm	1415mm	1090mm	1605mm
A3N1L18Q	1800kg	500mm	2035mm	1415mm	1090mm	1660mm
A3N1L20Q	2000kg	500mm	2105mm	1415mm	1090mm	1690mm
AG3N1L20Q	2000kg	500mm	2185mm	1525mm	1090mm	1770mm
