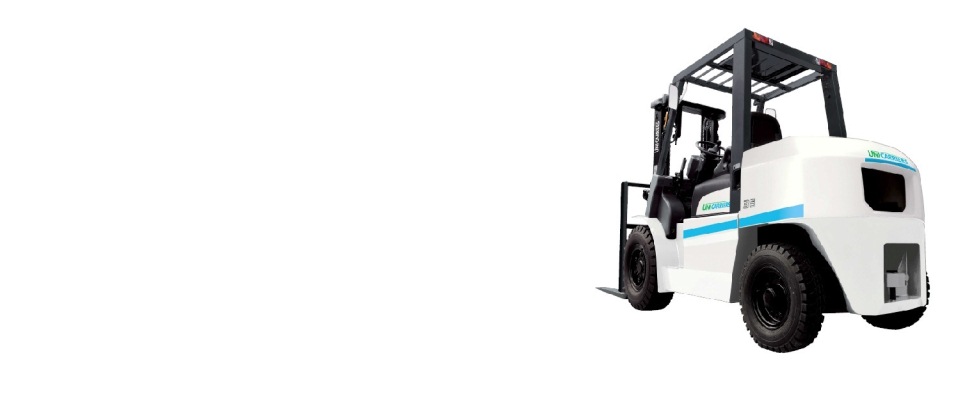

1F5 Series (3.5 - 5.0 ton)

New Dimension in
Performance

<Product Features>

  • IC engine-powered counterbalance forklifts
  • Load capacity range : From 3.5 ton - 5.0 ton (Load center : 600mm)
  • Power source : Gasoline engine (GK45) and diesel engine (Mitsubishi S6S)
  • The diesel models equipped with low-vibration, low-cost S6S engine which has the equivalent performance to comply the Tier 2 emission requirements.
  • The major truck specifications are shown as follows: (Overall length does not include fork length.)

Main Truck Specifications

EngineTransmissionLoad capacityLoad centerOverall widthOverall lengthOverall heightTurning radius
D1F5F35US6S dieselAutomatic3500kg600mm1480mm3085mm2230mm2730mm
D1F5M35US6S dieselManual3500kg600mm1480mm3085mm2230mm2730mm
D1F5F40US6S dieselAutomatic4000kg600mm1480mm3135mm2230mm2790mm
D1F5M40US6S dieselManual4000kg600mm1480mm3135mm2230mm2790mm
D1F5F45US6S dieselAutomatic4500kg600mm1480mm3215mm2230mm2825mm
D1F5M45US6S dieselManual4500kg600mm1480mm3215mm2230mm2825mm
D1F5F50US6S dieselAutomatic5000kg600mm1480mm3415mm2230mm3040mm
EngineTransmissionLoad capacityLoad centerOverall widthOverall lengthOverall heightTurning radius
J1F5F35UGK45 gasolineAutomatic3500kg600mm1480mm3080mm2250mm2790mm
J1F5F40UGK45 gasolineAutomatic4000kg600mm1480mm3110mm2250mm2820mm
J1F5F45UGK45 gasolineAutomatic4500kg600mm1480mm3190mm2250mm2860mm
J1F5F50UGK45 gasolineAutomatic5000kg600mm1480mm3390mm2250mm3040mm
