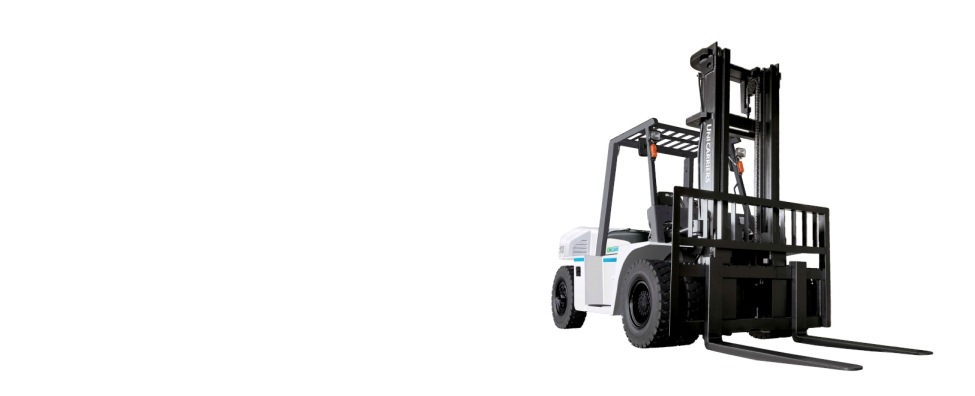

1F6 Series (6.0 - 10.0 ton)

The Ultimate in Operability

<Product Features>

  • Engine-powered counterbalance forklift
  • Load capacity range : From 6.0 ton to 10.0 ton (Load center : 600mm)
  • Equipped with Isuzu 6BG1 diesel engine.
  • The main truck specifications are shown as follows: (The overall length does not include fork length.)

Main Truck Specifications

EngineTransmissionLoad capacityLoad centerOverall widthOverall lengthOverall heightTurning radius
1F6F60U6BG1 dieselAutomatic6000kg600mm1995mm3610mm2450mm3360mm
1F6F70U6BG1 dieselAutomatic7000kg600mm1995mm3675mm2450mm3420mm
1F6F80U6BG1 dieselAutomatic8000kg600mm2165mm3935mm2560mm3630mm
1F6F100U6BG1 dieselAutomatic10000kg600mm2245mm4250mm2560mm3880mm
