Products Line Up

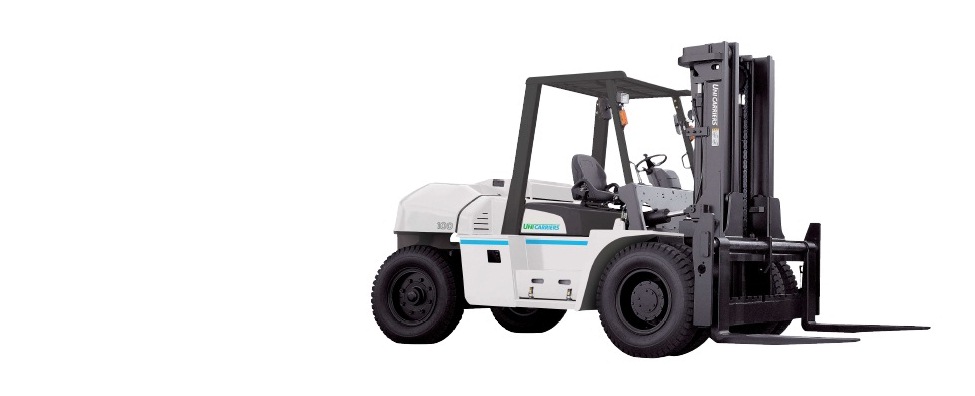

1F6 Series for Singapore (6.0 - 10.0 ton)


<Product Features>

  • Engine-powered counterbalance forklift (for Singapore)
  • Load capacity range : From 6.0 ton to 10.0 ton (Load center : 600mm)
  • Equipped with Isuzu 4HK1 diesel engine
  • The main truck specifications are shown as follows: (The overall length does not include fork length.)

Main Truck Specifications

EngineTransmissionLoad capacityLoad centerOverall widthOverall lengthOverall heightTurning radius
L1F6F60U4HK1 diesel Automatic6000kg600mm1995mm3565mm2530mm3320mm
L1F6F70U4HK1 diesel Automatic7000kg600mm1995mm3640mm2530mm3380mm
L1F6F80U4HK1 diesel Automatic8000kg600mm2165mm3980mm2640mm3630mm
L1F6F100U4HK1 diesel Automatic10000kg600mm2245mm4245mm2640mm3880mm
