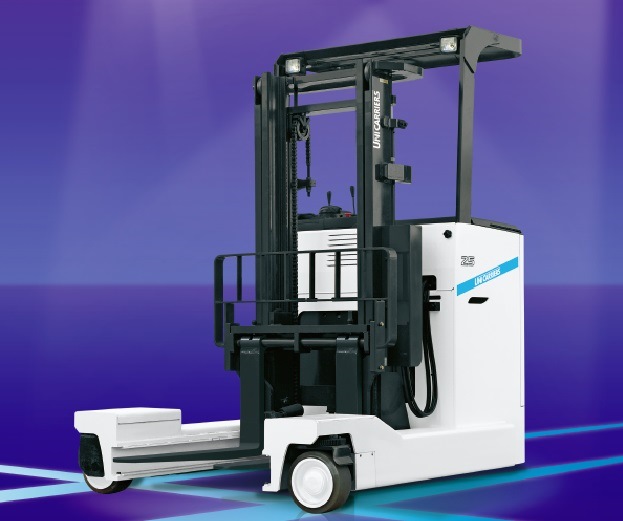

RX Series Multi (Stand-up, 1.0 - 2.5 ton)

Multi-directional

  • 360 degree multi-directional, free to travel anywhere you want
  • Standard / spin turn mode - The ability to pivot around the center of the chassis allows on-the-spot changes of direction.
  • Transverse mode - Provides stable sideways travel, which is ideally suited for transporting elongated loads.
  • Extra standard / righ angle turn mode - The mode enables a pivot around the side of the chassis, allowing easy maneuvering in tight 90 degree turns.
  • Diagonal mode - The mode facilitates loading operations that require various changes in angle over short travel distances.
  • Pedal incorporating a presence switch
  • Safety Cruise - After temporarily stopping on an incline and releasing the brake, the vehicle will descend only at very low speed until the accelerator is applied and travel is easily resumed.
  • Passowrd Entry Sytem (Option)

Main Truck Specifications

Load capacityLoad centerMax. fork heightOverall widthOverall lengthOverall heightTurn. Radius (Spin turn)Turning radius (Right angle turn)Battery max. capacity (5hr)
J-2R1-L10MU1000kg500mm3000mm1250mm1940mm1995mm1185mm1525mm48V/201Ah
J-2R1-L12MU1200kg500mm3000mm1250mm1940mm1995mm1185mm1525mm48V/201Ah
J-Y2R1-L12MU1200kg500mm4000mm1250mm1940mm2495mm1185mm1525mm48V/201Ah
J-2R1-L14MU1400kg500mm3000mm1250mm2030mm1995mm1225mm1555mm48V/210Ah
J-Y2R1-L14MU1400kg500mm4000mm1250mm2030mm2495mm1225mm1555mm48V/210Ah
J-2R1-L15MU1500kg500mm3000mm1250mm2030mm1995mm1225mm1555mm48V/280Ah
J-Y2R1-L15MU1500kg500mm4000mm1250mm2030mm2495mm1225mm1555mm48V/280Ah
J-2R1-L18MU1800kg500mm3000mm1250mm2105mm1995mm1225mm1555mm48V/280Ah
J-Y2R1-L18MU1800kg500mm4000mm1250mm2155mm2495mm1270mm1590mm48V/280Ah
J-2R2-L20MU2000kg500mm3000mm1390mm2210mm2050mm1285mm1655mm48V/320Ah
J-Y2R2-L20MU2000kg500mm4000mm1390mm2210mm2550mm1285mm1655mm48V/320Ah
J-2R2-L25MU2500kg500mm3000mm1390mm2210mm2050mm1285mm1655mm48V/320Ah
J-Y2R2-L25MU2500kg500mm4000mm1390mm2250mm2550mm1285mm1655mm48V/320Ah
