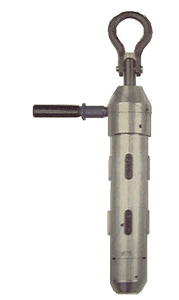

◆Roll Handling Shaft (RHS)

The Roll Handling Shaft utilizes mechanical type lock (air is not required). As a matter of course, there is not a trouble that roll drops due to blowout, therefore, it is a safety hanging type shaft. It is suitable for delivering cumulate rolls, box packing after slitting, take-off of boxed rolls.

[Specification]
Type	RHS75-150	RHS75-300	RHS75-600	RHS149-500
Core internal diameter	76～78mm			150～152mm
Allowable load	150kg	300kg	600kg	500kg
Lock type	Key type
Operation type	Manual type
Weight	4kg	7kg	8kg	10kg

Note: The alloable load is reference load but not guaranteed performance. The withstand load depends on the core condition.

If you would like to try it before using it, demo shafts are available.
Please feel free to ask us.

◆Roll reversing equipment

It can be used for unloading a product from a winder, the resupination of a product after unloading, transferring a product from pallet, or an assistant device to load a substrate to an unwinder.

[Basic specification]
Working size:
Winding diameter max?600mm,
Substrate width: max1200Lmm,
Working weight: max300kg

No.	Type	Driving	move up and down	reversing	Load	Lift height
1	SLE30ー05R	Hand motion	Auto	Auto	300kg	325mm
2	SLE30ー05RD	Electric operation	Auto	Auto	300kg	340mm
3	SLE30ー10RD	Electric operation	Auto	Auto	300kg	1100mm

◆Others

Automated guided vehicle / Automatic packing machine / Automatic storage
A wound roll is automatically transferred by the automatic guided vehicle and packed automatically and temporally stored by the automatic storage. A film manufacturing line and converting lines can be interconnected with Nichiyu products.
